ReGen™ Wet Shoe Sub
Onshore Field-proven Technology

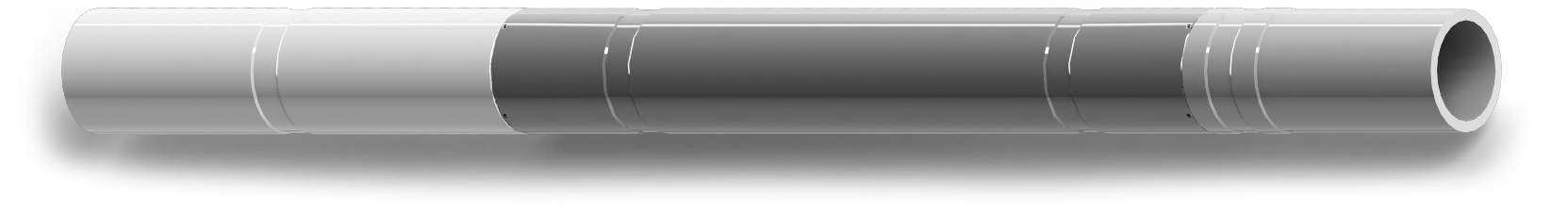

The REGEN™ Wet Shoe Sub (WSS) is a component of our REGEN™ Liner Hanger system. The REGEN™ WSS has an integrated landing profile for the cementing dart that can be shifted with hydraulic pressure. This allows the operator to pump their cement job as per their plan and once the dart lands in the WSS, the operator can set any subsequent hydraulic tools or perform any required tests at pressures up to 10,000psi, prior to shearing the WSS and regaining circulation.
Benefits
- Operators can carry out cement operations as normal and subsequently, allow perforating guns or other intervention equipment to be pumped into the well - saving the costs and time of tractors or coil tubing.
- Interchangeable wiper dart seat insert.
Application
The REGEN™ Wet Shoe Sub can be used in cemented liner applications.
Features
- Optionally match OD and drift of liner
- Large flow area around the wiper dart after shear-out
- Rotationally locked internals
- Positive indication of wiper dart landing
- Circulation through tool after shear-out
- Compatible with the full suite of REGEN™ tools
- Accurately places stimulation treatments without intervention
